WIFI BLUETOOTH IC FOR SONY PLAYSTATION 5

SONY PLAYSTATION 5 WI-FI AND BLUETOOTH CHIP (CFI-10XX / CFI-11XX / SLIM)

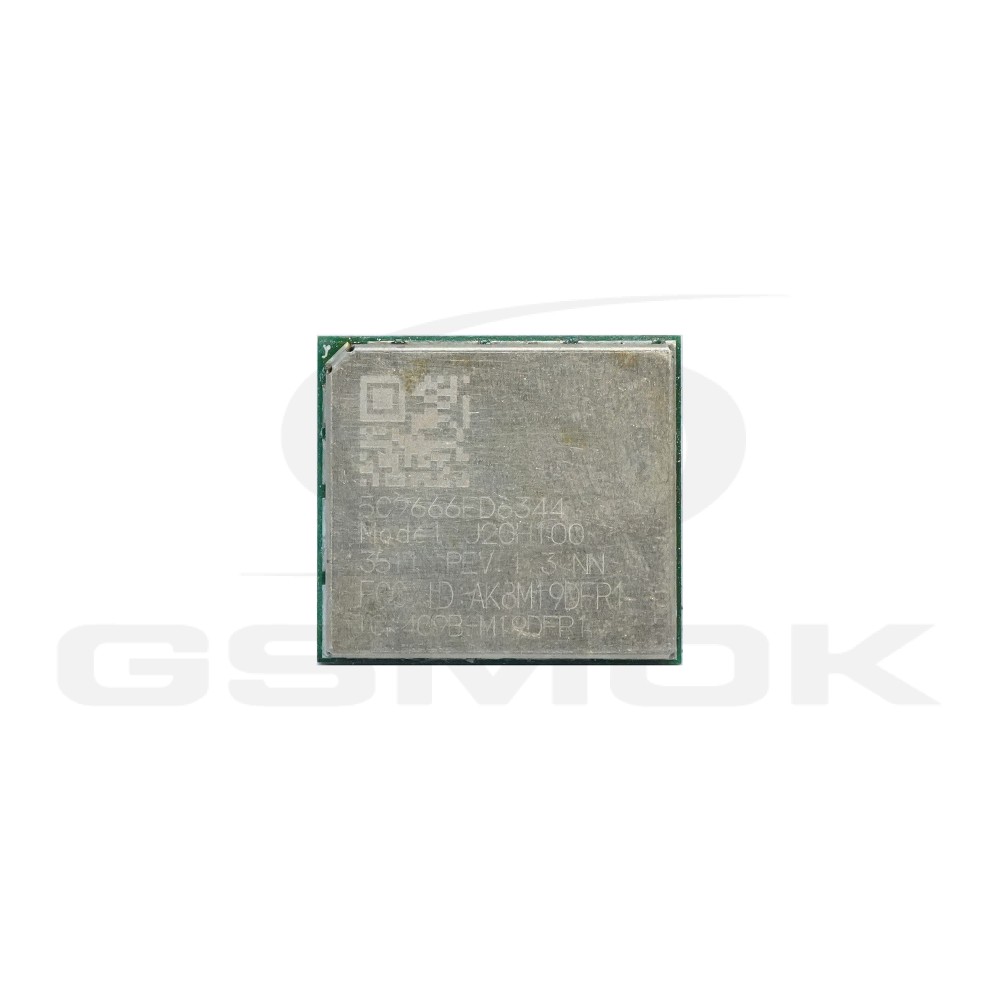

An integrated Wi-Fi and Bluetooth wireless chip (e.g., J20H100, AW-XM501, J20H104—depending on the motherboard revision) designed for Sony PlayStation 5 consoles (Fat and Slim versions). This component provides wireless connectivity to the network via the Wi-Fi 6 (802.11ax) standard and communication with DualSense controllers via the Bluetooth 5.1 standard.

Product features:

• Support for Wi-Fi 6 and Bluetooth 5.1 – ensures native performance and low latency in data transmission and controller signal transmission.
• Wide compatibility – works with select revisions of PS5 Fat motherboards (CFI-10xx, CFI-11xx series) and PS5 Slim.
• Original quality – restores the console’s factory wireless connectivity settings.

Technical specifications:

• Part Numbers (depending on batch): J20H100 / AW-XM501 / J20H104
• Part type: Wi-Fi & Bluetooth wireless chip / module
• Wi-Fi standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Bluetooth standard: 5.1

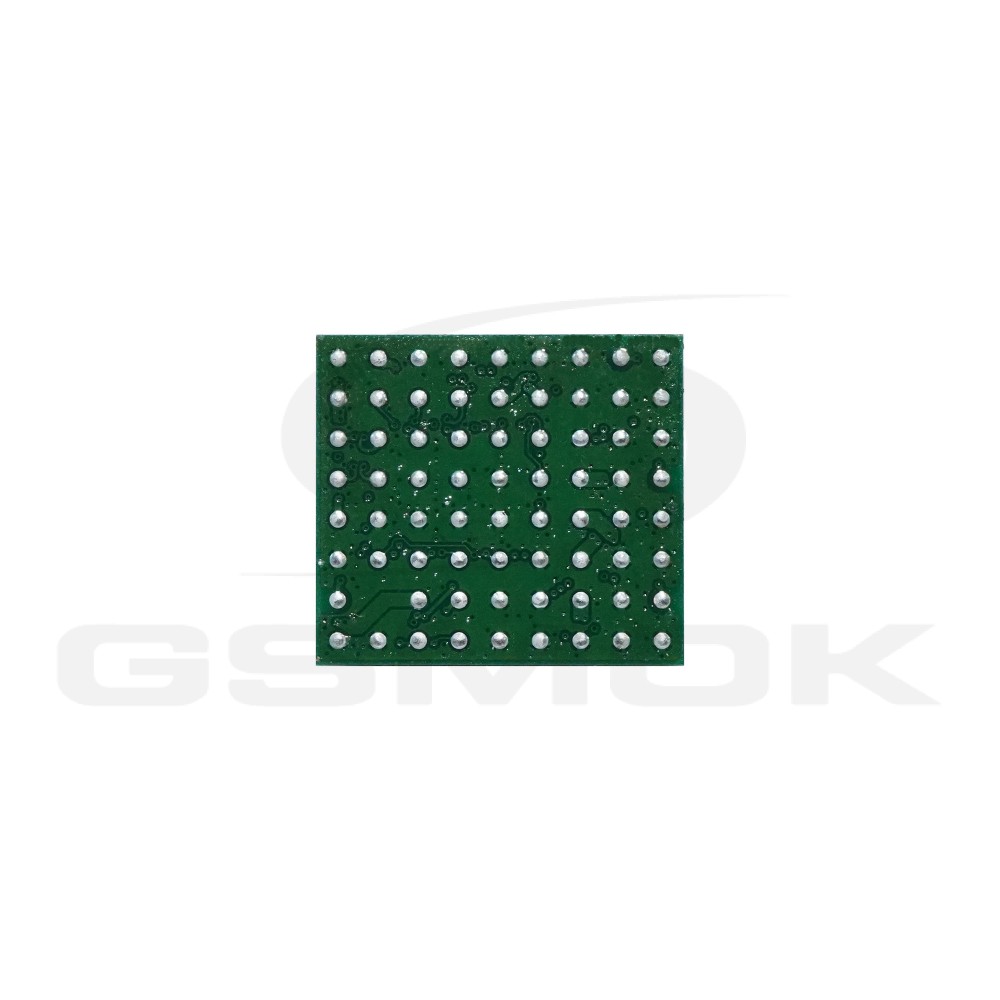

• Mounting type: BGA / SMD
• Compatibility: Sony PlayStation 5 (Fat CFI-10xx, CFI-11xx, CFI-12xx / Slim)

Package Contents:

1× Sony PlayStation 5 Wi-Fi/Bluetooth chip

Note: Replacing the module involves BGA/SMD soldering and requires advanced micro-soldering skills and professional equipment (hot-air soldering station, microscope).

Replacing the module may help resolve the following issues, provided that the direct cause is damage to the Wi-Fi/Bluetooth module. It is recommended to perform a full diagnostic check of the motherboard before proceeding with the repair.

• Inability to pair the DualSense controller wirelessly (the controller works only when connected via a USB cable),
• Controllers disconnecting during gameplay or a sudden drop in signal range,
• Failure to detect Wi-Fi networks, very slow download speeds, or constant disconnections from the router,
• The console freezes when attempting to access network settings, or firmware update errors occur.
