WIFI BLUETOOTH IC AW-NB218 FOR SONY PLAYSTATION 4

SONY PLAYSTATION 4 (FAT / SLIM / PRO) AW-NB218 WI-FI AND BLUETOOTH MODULE

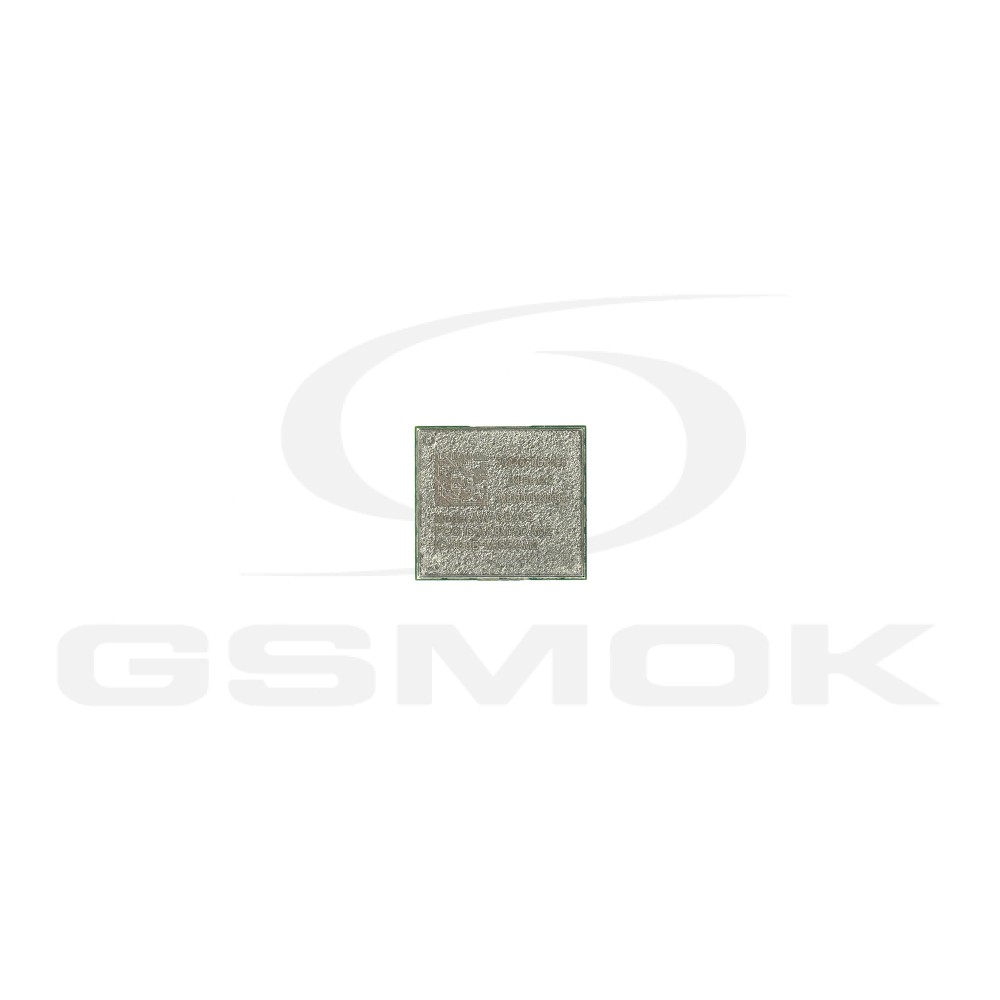

The AW-NB218 Wi-Fi and Bluetooth wireless communication module, model AW-NB218-2-22180, is designed for select Sony PlayStation 4 FAT, Slim, and Pro console models. The module handles the console’s connection to a Wi-Fi network and Bluetooth communication with DualShock 4 controllers and compatible accessories.

Technical Specifications:

• Manufacturer / Model: AW-NB218 / AW-NB218-2-22180
• Part Type: Wi-Fi / Bluetooth Wireless Module

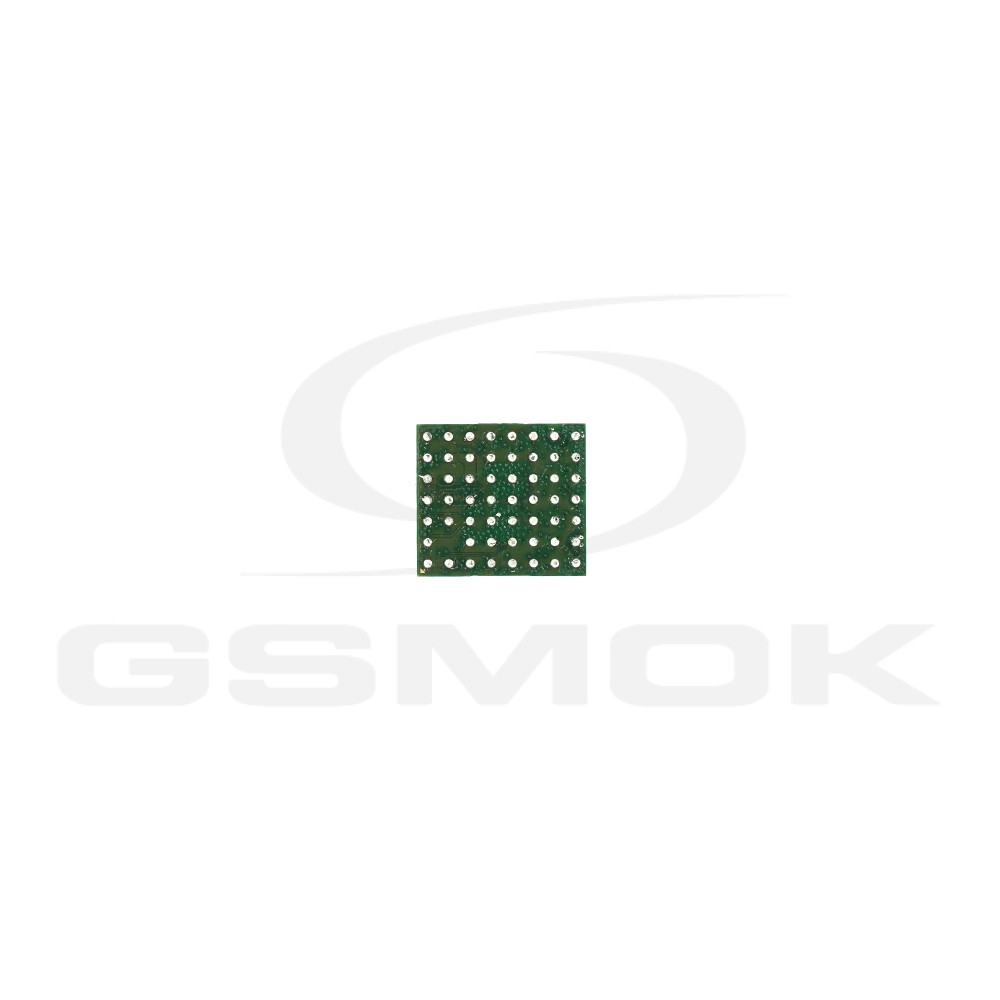

• Installation Type: BGA / SMD Soldering
• Compatibility:
  • PS4 FAT: CUH-12xx series (e.g., CUH-1216)
  • PS4 Slim: CUH-20xx, CUH-21xx, CUH-22xx series (e.g., CUH-2016, CUH-2116, CUH-2216)
  • PS4 Pro: CUH-70xx, CUH-71xx, CUH-72xx series (e.g., CUH-7016, CUH-7116, CUH-7216)

Package contents:

1× AW-NB218 Wi-Fi/Bluetooth module for Sony PlayStation 4

Note: Replacing the module requires specialized BGA micro-soldering work using a hot-air soldering station.

Replacing the module may resolve the issues listed below if they are caused by a faulty Wi-Fi/Bluetooth module. Perform a device diagnostic test before beginning the repair.

• Wi-Fi networks not detected;
• unstable connection or signal loss;
• problems pairing controllers;
• controller only works when connected via USB cable;
• Errors occurring during console software updates.
