LCD Display DOOGEE V30 / V30 5G / V30T / V MAX / S100 / S100 PRO BIG CONNECTOR [TFT]

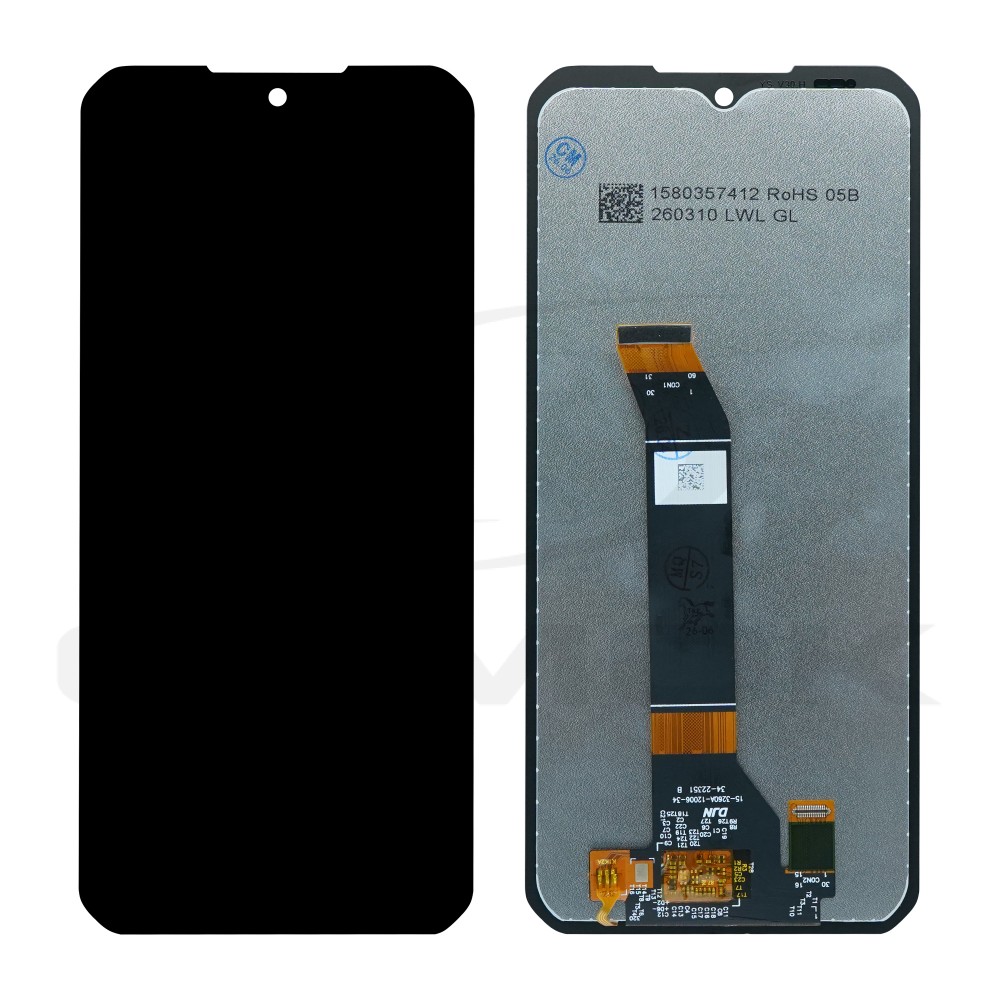

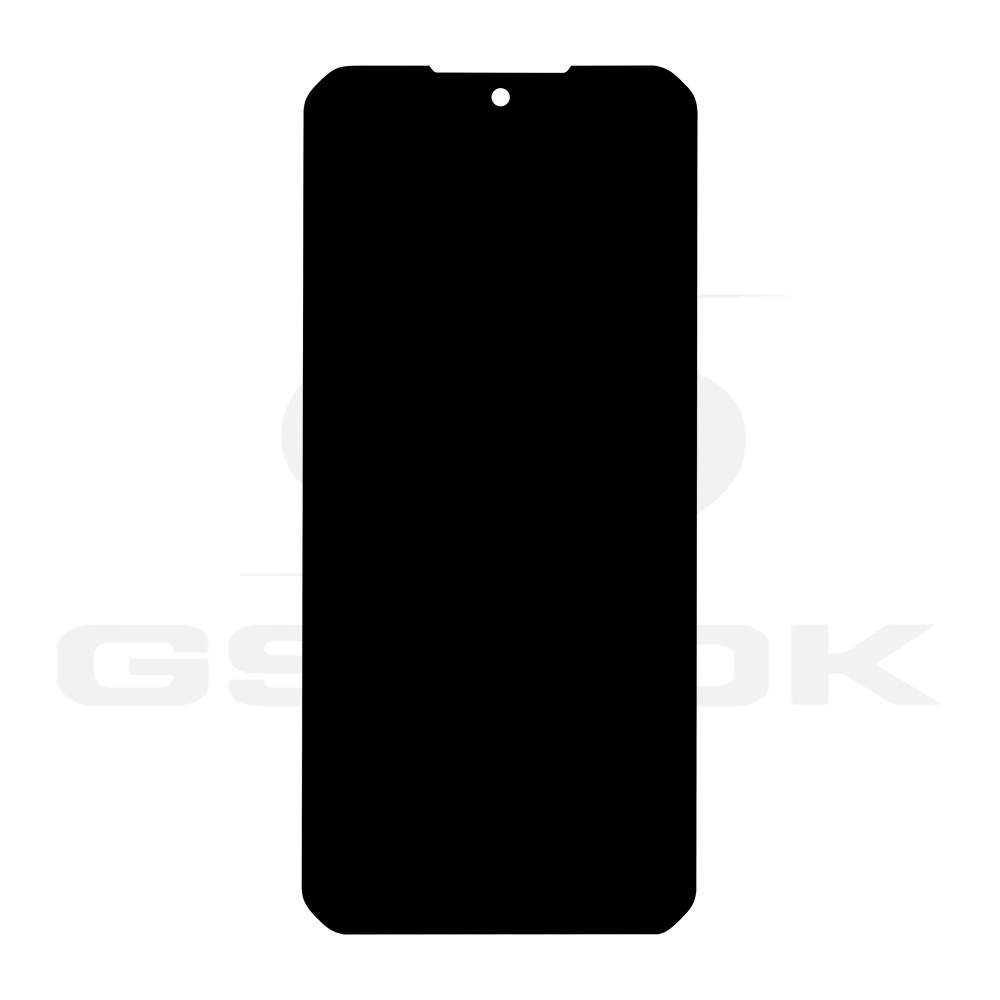

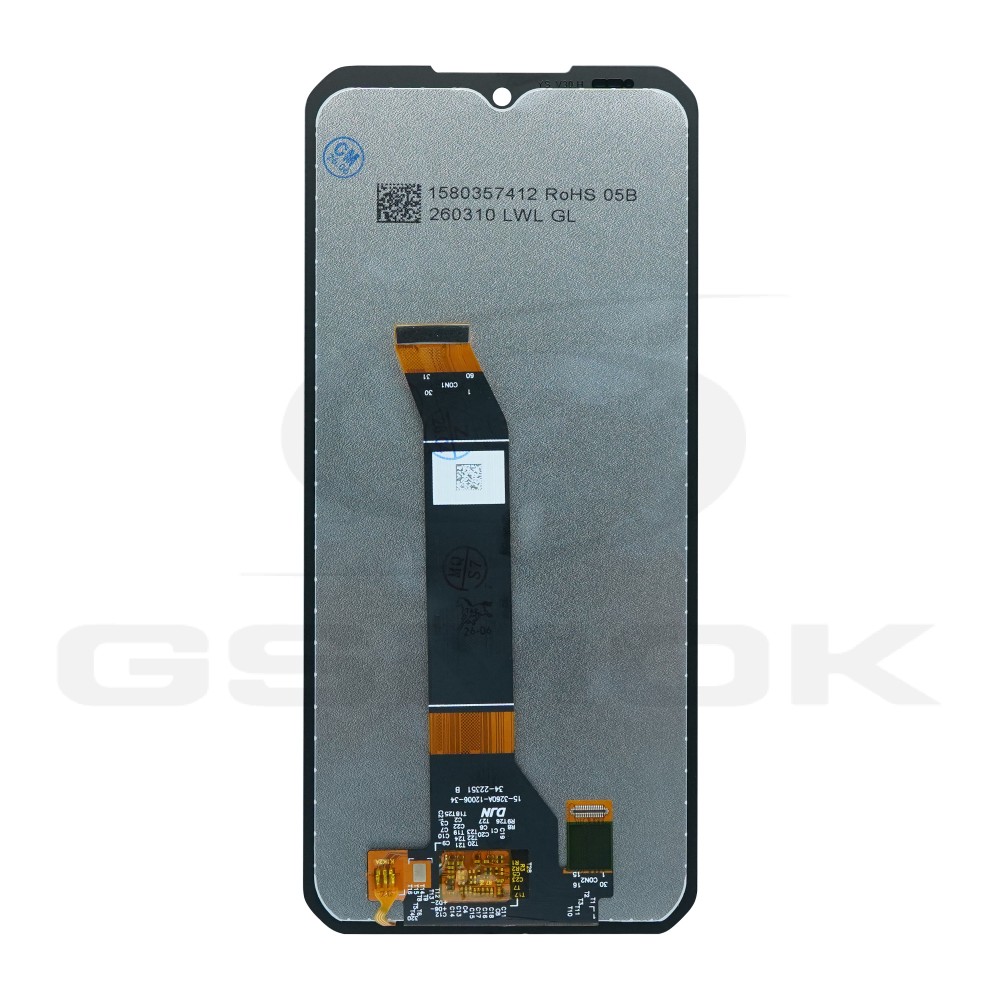

LCD SCREEN FOR DOOGEE V30 / V30 5G / V30T / V MAX / S100 / S100 PRO TFT – LARGE CONNECTOR

LCD display integrated with a touch panel, designed for Doogee V30, V30 5G, V30T, V Max, S100, and S100 Pro smartphones. This integrated module is a replacement part featuring a large FPC connector, designed for servicing damaged or malfunctioning display panels.

Product features:

• TFT Display: The module is based on liquid crystal technology with an active matrix of thin-film transistors, which ensures accurate color reproduction and stable viewing angles.

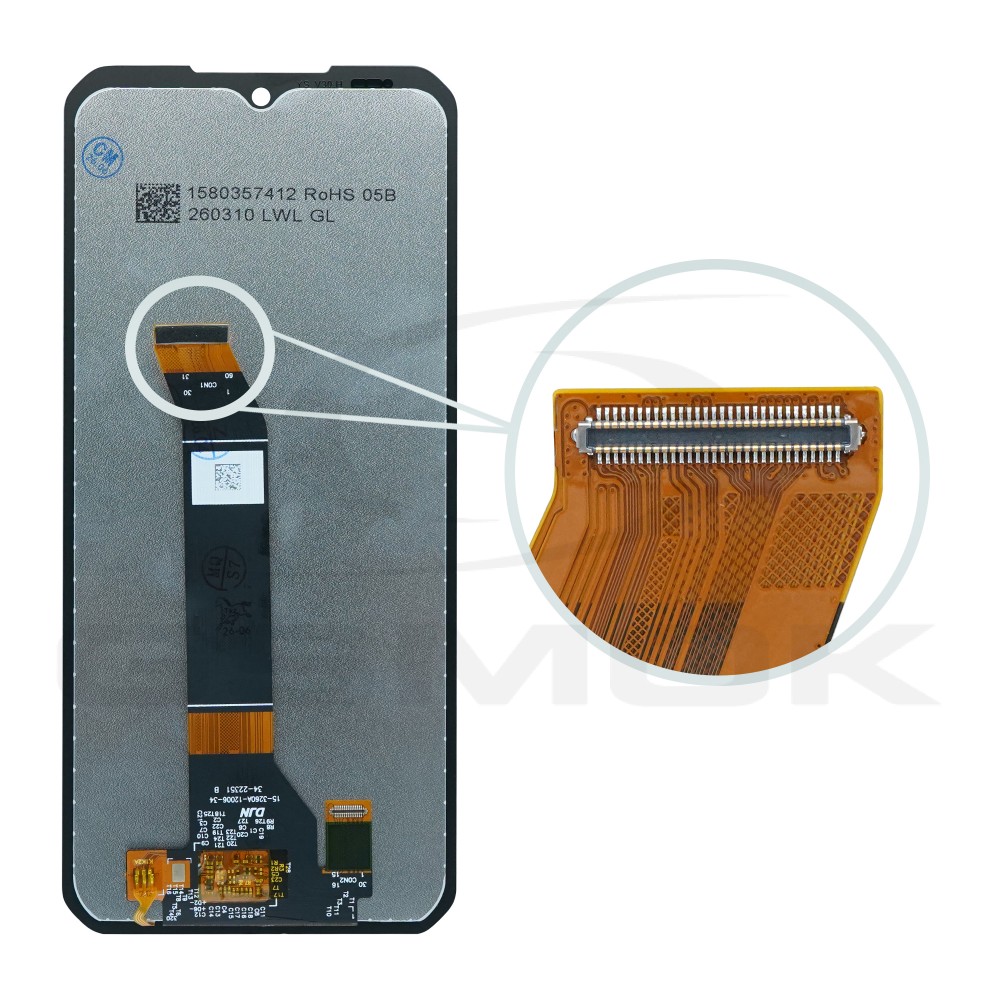

• Large Connector (Big Connector): This version is equipped with a dedicated signal ribbon cable assembly featuring a wide FPC connector; compatibility with the old part must be verified before installation.
• Integrated Digitizer: The touch surface is factory-integrated with the display, enabling accurate and precise touch response across the entire screen.
• Housing Compatibility: The screen dimensions (6.58") and the waterdrop-shaped notch correspond to the factory mounting points in the housings of compatible Doogee models.

Technical Specifications:

• Screen diagonal: 6.58"
• Resolution: 1080 x 2408 px (FHD+)
• Screen aspect ratio: 20:9
• Pixel density: ~401 ppi
• Display type: TFT LCD (IPS)
• Connector type: Large connector (Big Connector FPC)
• Part type: Integrated display module with touchscreen
• Compatibility: Doogee V30 / V30 5G / V30T / V Max / S100 / S100 Pro

Included:

LCD display with touchscreen for Doogee V30 / V30 5G / V30T / V Max / S100 / S100 Pro TFT – large connector
