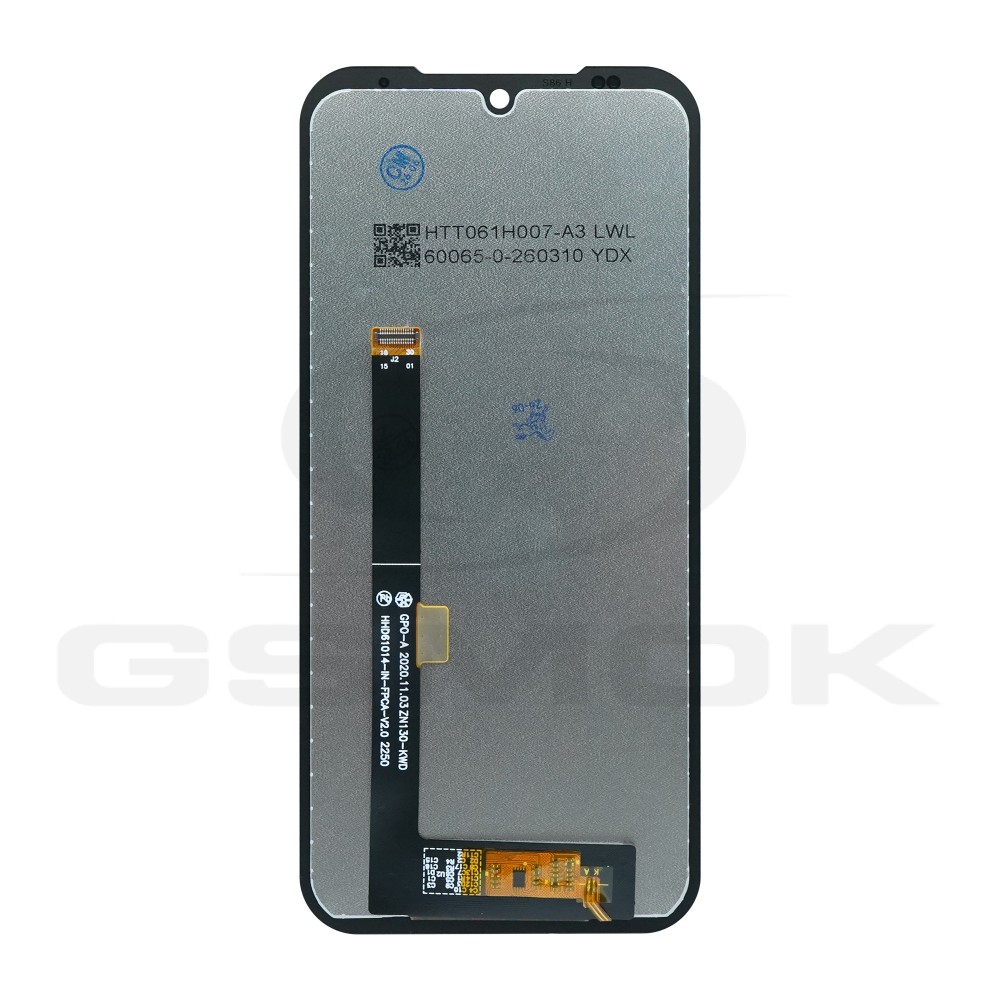

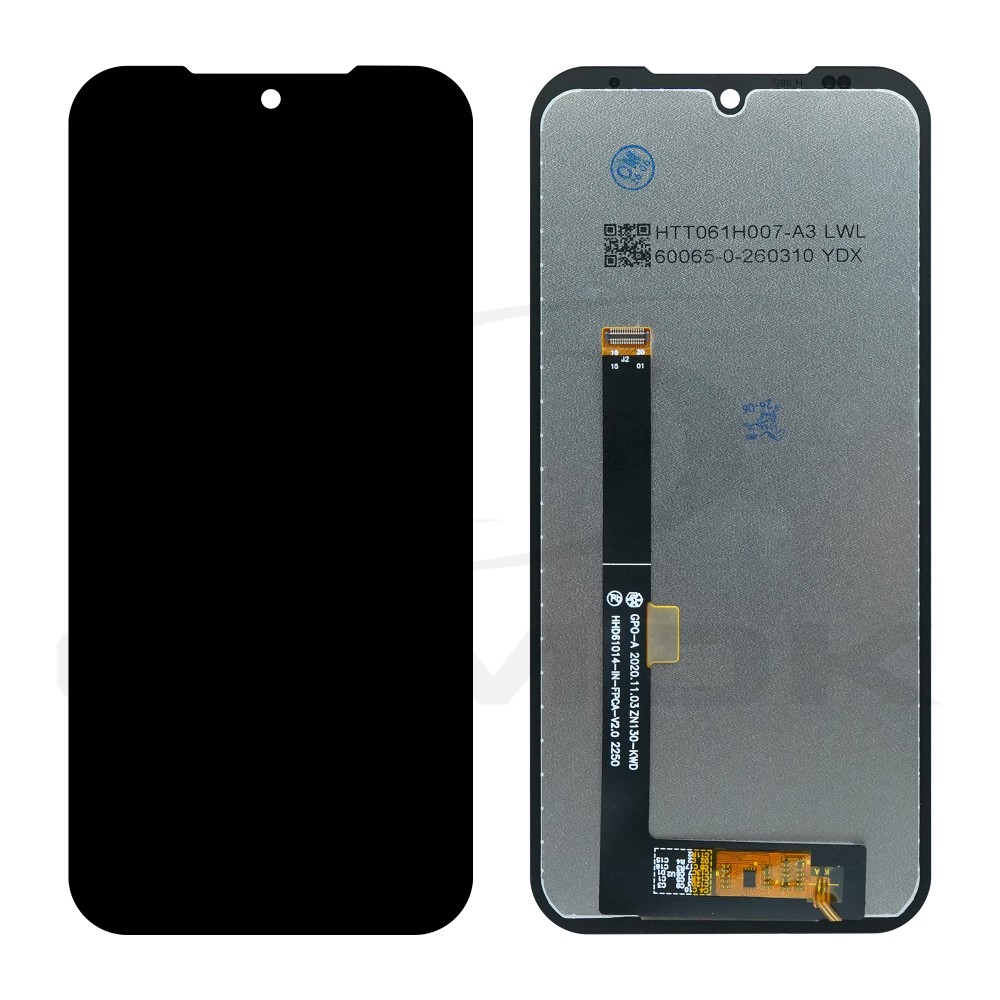

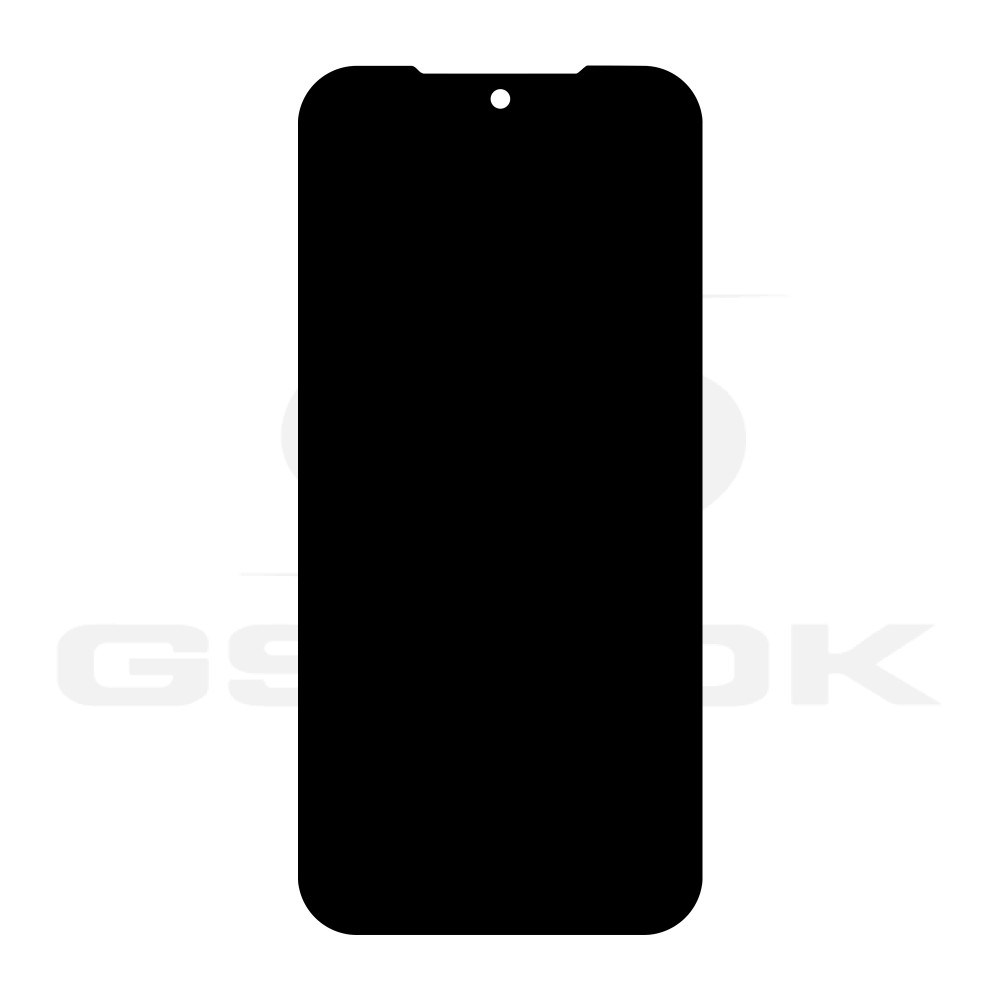

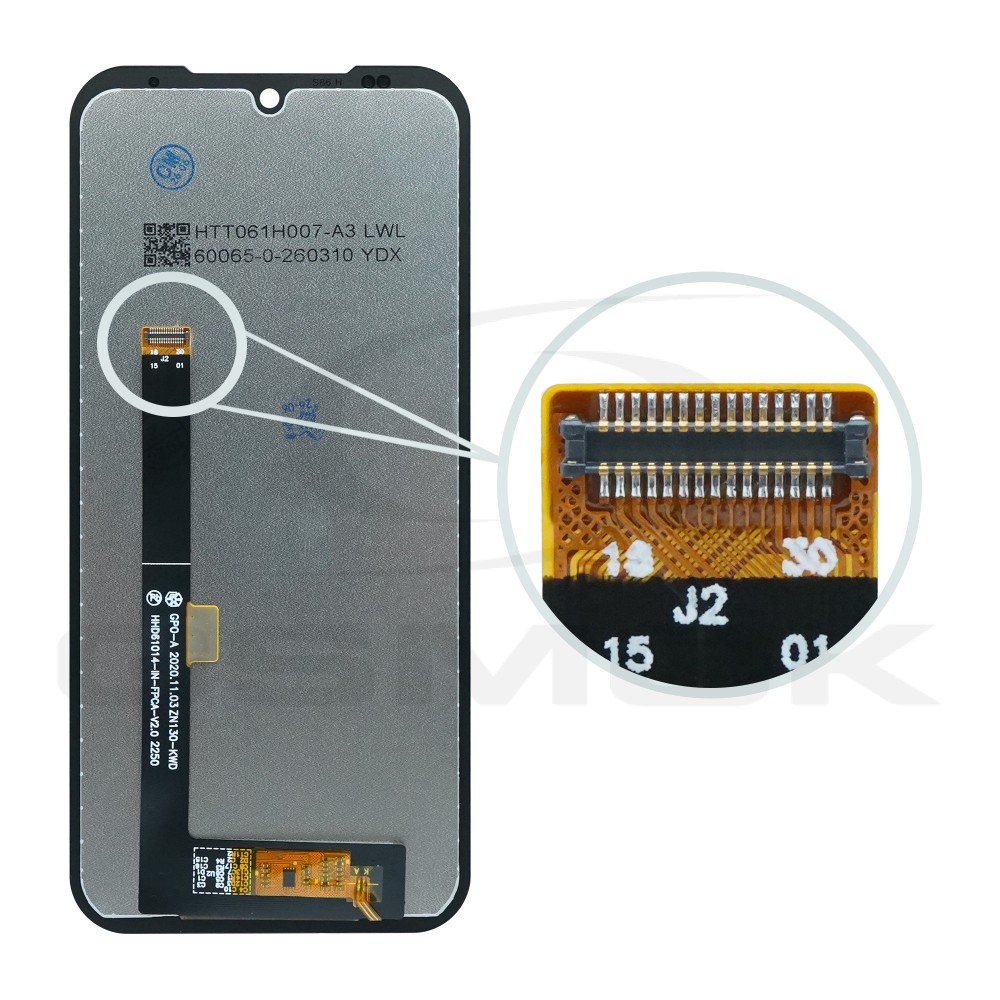

LCD Display DOOGEE S86 / S86 PRO [TFT]

LCD SCREEN FOR DOOGEE S86 / S86 PRO TFT

A TFT LCD display integrated with a touchscreen panel, designed for the Doogee S86 and Doogee S86 Pro smartphones. This integrated module is a replacement part intended for service repairs of a damaged or malfunctioning screen panel.

Product Features:

• TFT Matrix: The module is based on liquid crystal technology with an active matrix of thin-film transistors, which ensures accurate color reproduction and stable viewing angles.
• Integrated Digitizer: The touch surface, factory-integrated with the display, ensures accurate and precise touch response across the entire screen.
• Fit for the Housing: The screen dimensions (6.1") and the waterdrop-shaped camera cutout correspond to the factory mountings in the Doogee S86 and S86 Pro housings.

Technical Specifications:

• Model: Doogee S86 / Doogee S86 Pro
• Screen diagonal: 6.1"
• Resolution: 720 x 1560 px (HD+)
• Screen aspect ratio: 19.5:9
• Pixel density: ~282 ppi
• Display type: LCD TFT (IPS)
• Part type: Integrated display module with touchscreen
• Compatibility: Doogee S86 / Doogee S86 Pro

Included:

LCD display with touch panel for Doogee S86 / S86 Pro TFT
