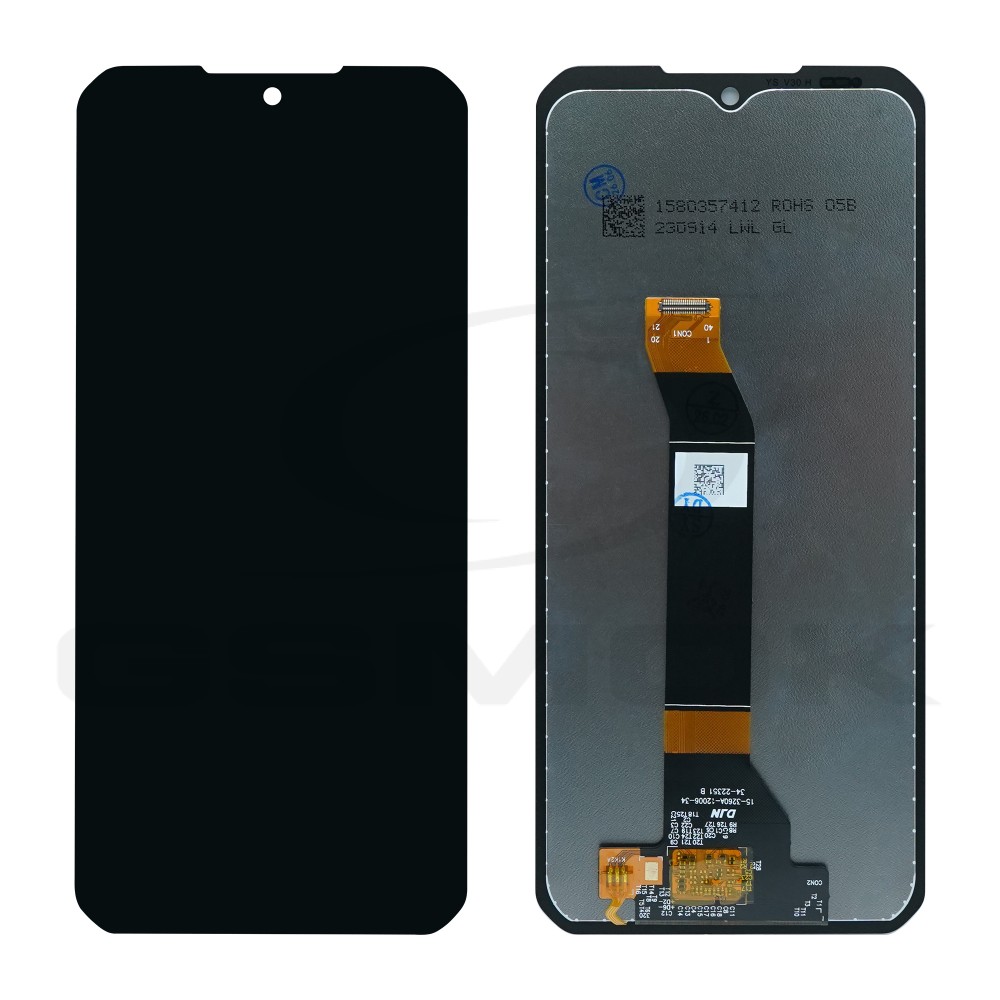

LCD Display DOOGEE S100 / S100 PRO SMALL CONNECTOR [TFT]

LCD SCREEN FOR DOOGEE S100 / S100 PRO TFT – SMALL CONNECTOR

LCD display integrated with a touchscreen panel, designed for the Doogee S100 and Doogee S100 Pro smartphones. This integrated module is a replacement part featuring small FPC connectors, designed for service repairs of a damaged or malfunctioning screen panel.

Product features:

• TFT / IPS LCD Panel: The module is based on liquid crystal technology with an active matrix of thin-film transistors, which ensures accurate color reproduction and stable viewing angles.
• Small Connector: This version is equipped with a dedicated signal ribbon cable assembly featuring a smaller FPC connector; compatibility with the old part must be verified before installation.
• Integrated Digitizer: The touch surface is factory-integrated with the display, enabling accurate and precise touch response across the entire screen.
• Housing Compatibility: The screen dimensions (6.58") and the waterdrop-shaped notch correspond to the factory mounting points in the Doogee S100 and S100 Pro housings.

Technical Specifications:

• Model: Doogee S100 / Doogee S100 Pro
• Screen diagonal: 6.58"
• Resolution: 1080 x 2408 px (FHD+)
• Screen aspect ratio: 20:9
• Pixel density: ~401 ppi
• Display type: LCD TFT (IPS)
• Connector type: Small connector (Small Connector FPC)
• Part type: Integrated display module with touch panel
• Compatibility: Doogee S100 / Doogee S100 Pro

Included:

LCD display with touchscreen for Doogee S100 / S100 Pro TFT – small connector
